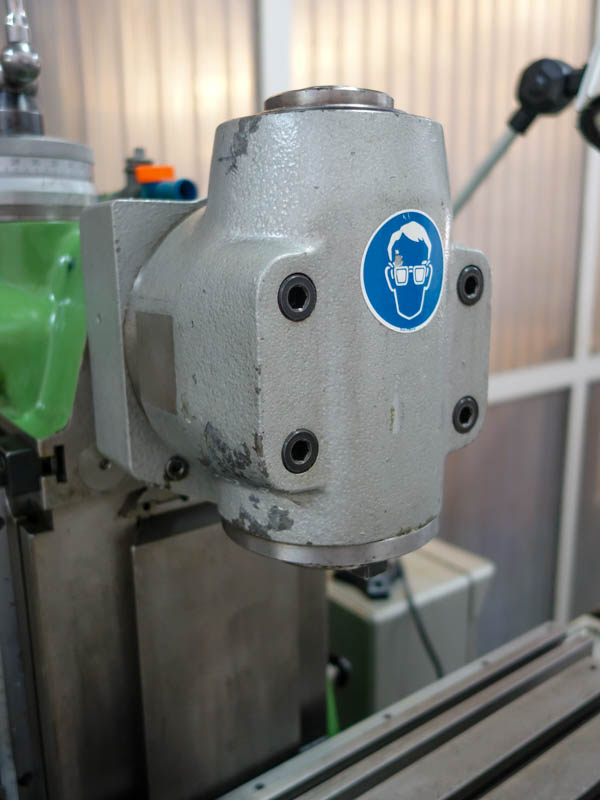

Milling machine SCHAUBLIN 13
| State | Used |
|---|---|
| Category | Milling machine |
| Brand | SCHAUBLIN |
| Model | 13 |
| Serial number | 198805 |
| Year of manufacture | - |
| Inventory number | 3411 |
Characteristics
Technical data
Range
Longitudinal : 320 mm
Transversal : 150 mm
Vertical : 375 mm
Spindle nose : 30 ISO
Spindle speed (infinitely variable) : 58-2'000 rpm
Feed rate : 12-400 mm/min
Fast travel : 1200 mm/min
Power supply : 3x380V/50Hz
Main motor power : 1.5 kW
Total power : 2.1 kW
Dimensions : 1500 x 1200 x 1000 mm
Weight : about 700 Kg
composition and accessories
Coolant system
machine lamp
