Milling machine SCHAUBLIN 13

State Used
Category Milling machine
Brand SCHAUBLIN
Model 13
Serial number 257071
Year of manufacture -
Inventory number 3167
> Data sheet
Characteristics

Range
Longitudinal : 320 mm
Transversal : 150 mm
Vertical : 375 mm
Spindle nose : 30 ISO
Spindle speed (infinitely variable) : 58-2'000 rpm
Feed rate : 12-400 mm/min
Fast travel : 1200 mm/min
Power supply : 3x380V/50Hz
Main motor power : 1.5 kW
Total power : 2.1 kW
Dimensions : 1500 x 1200 x 1000 mm
Weight : about 700 Kg

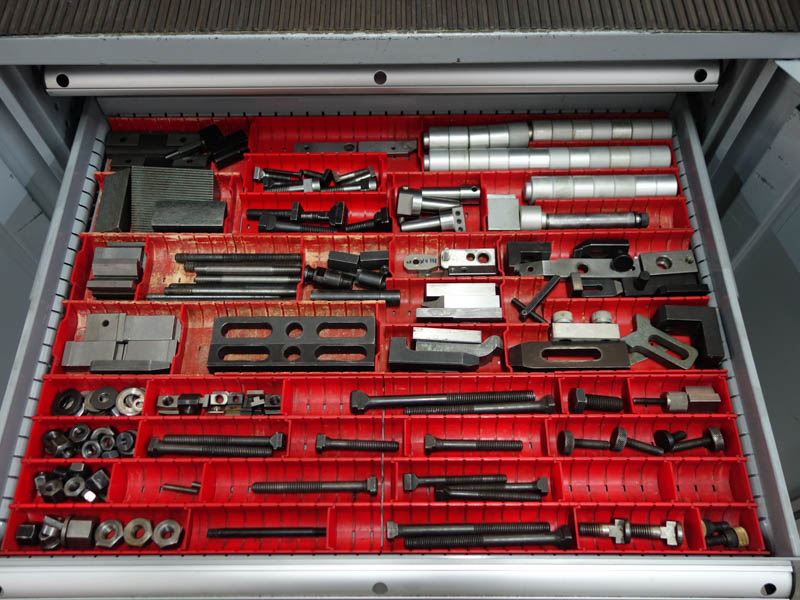

composition and accessories

Rotary vice
Coolant system
