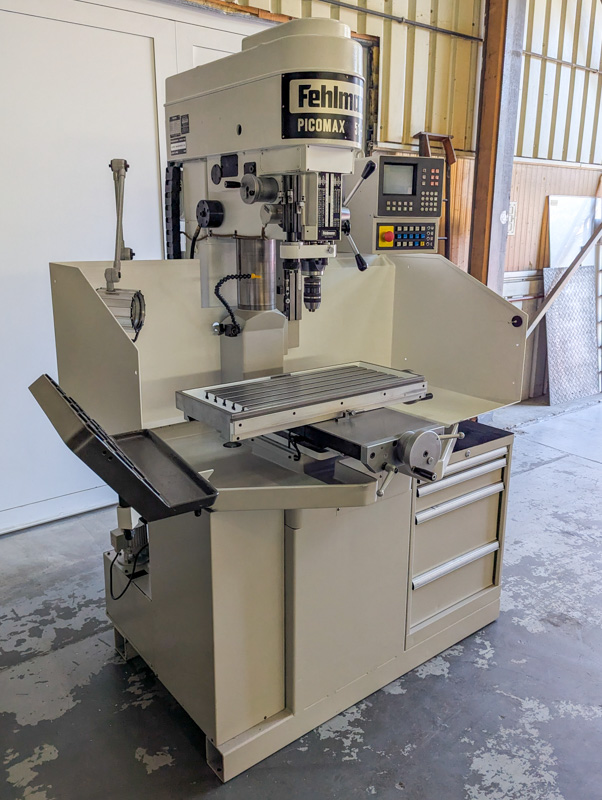

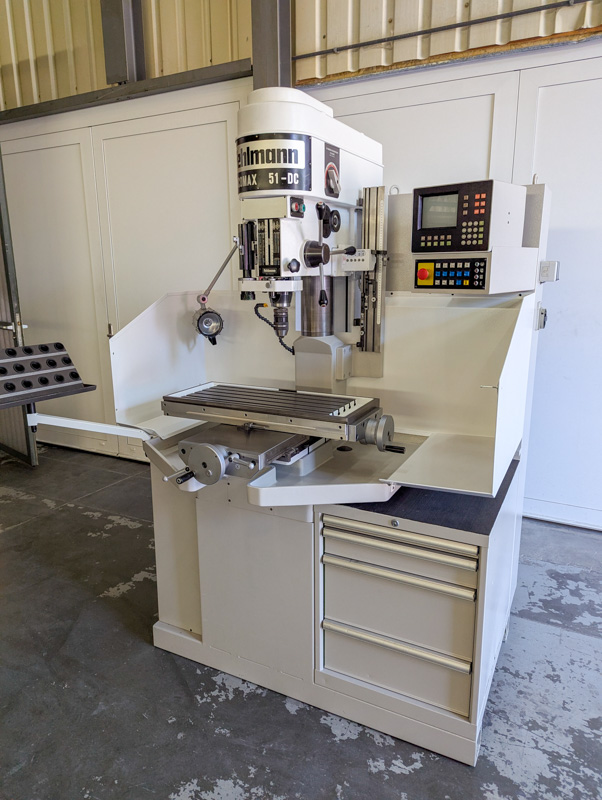

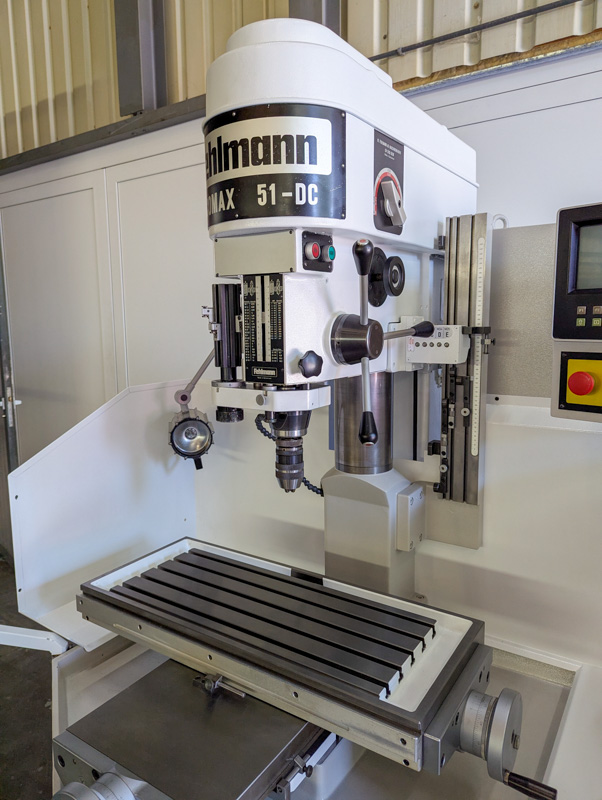

Milling drilling FEHLMANN PICOMAX 51-DC
| State | Used |
|---|---|
| Category | Drilling machine |
| Brand | FEHLMANN |
| Model | PICOMAX 51-DC |

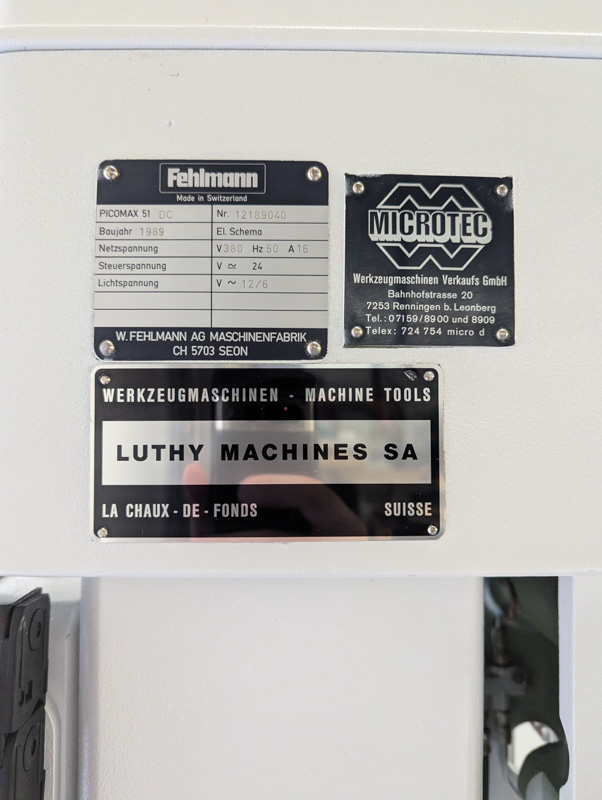

| Serial number | 12189040 |
| Year of manufacture | 1989 |
| Inventory number | 3371 |
Characteristics
Working range
X/Y/Z stroke: 450/260/120 mm
Stroke W: 450 mm
Distance table - spindle nose min./max. 0-560 mm

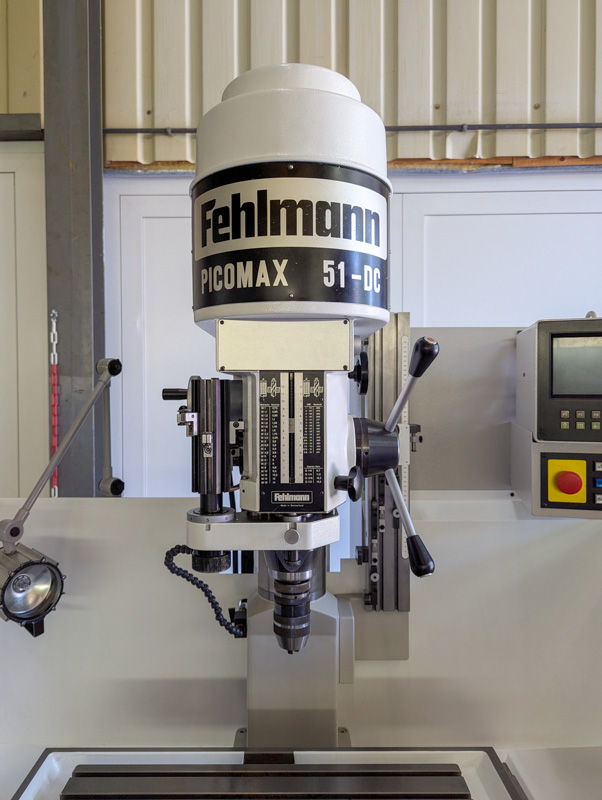

Spindle
Max. power: 4 kW
Rotational speed: 50-9'200 rpm
Feed rate in Z : 0.002-0.32 mm/t

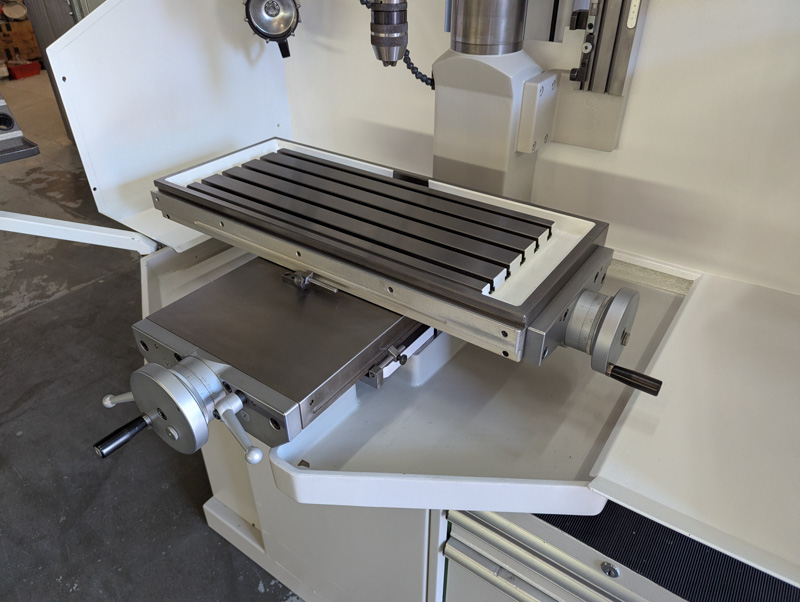

Table
Clamping surface: 640x300 mm
Maximum weight on the table: 100 kg
Weight : about 1'300 kg
Dimensions (width/depth/height): 1492/1480/2330 mm
Power supply : 3x380 V 50 Hz
Max. power : 6 kW

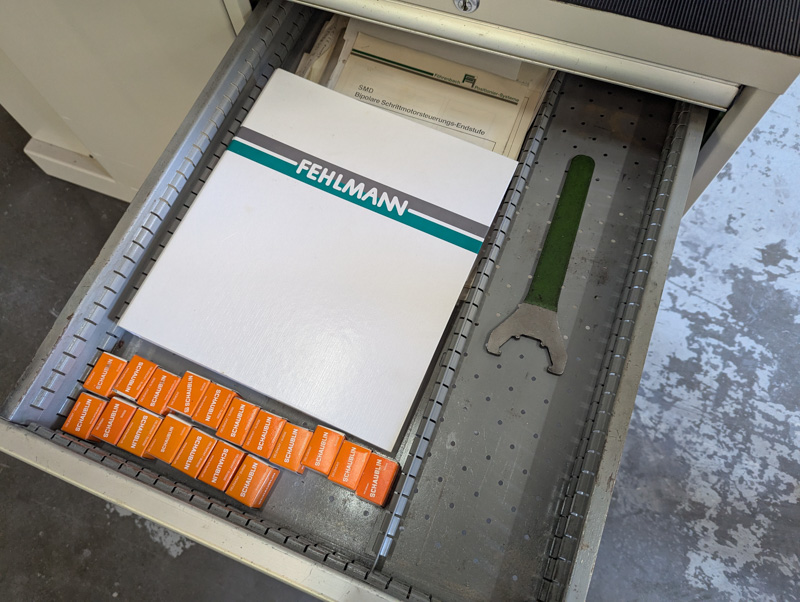

composition and accessories

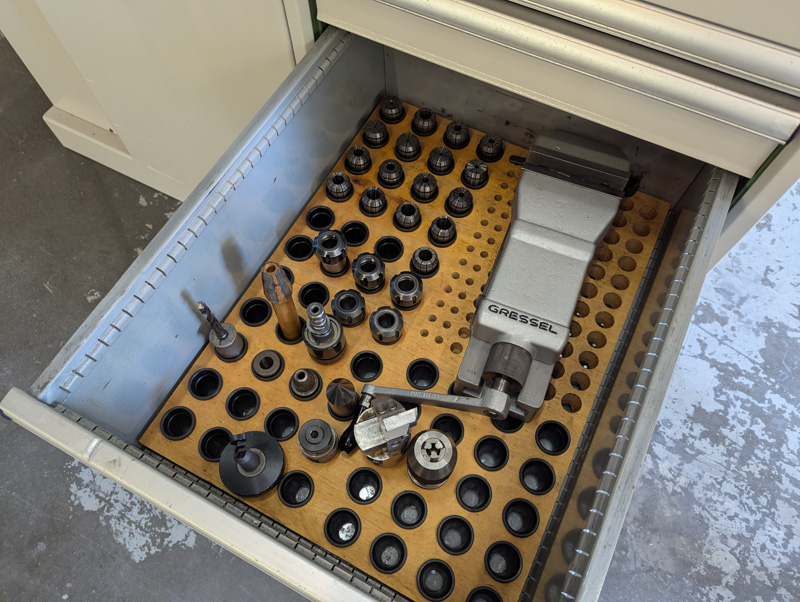

ESX 25 collet set, diameters 1 to 16.00 mm
Used ESX 25 collet holder on SF32 base

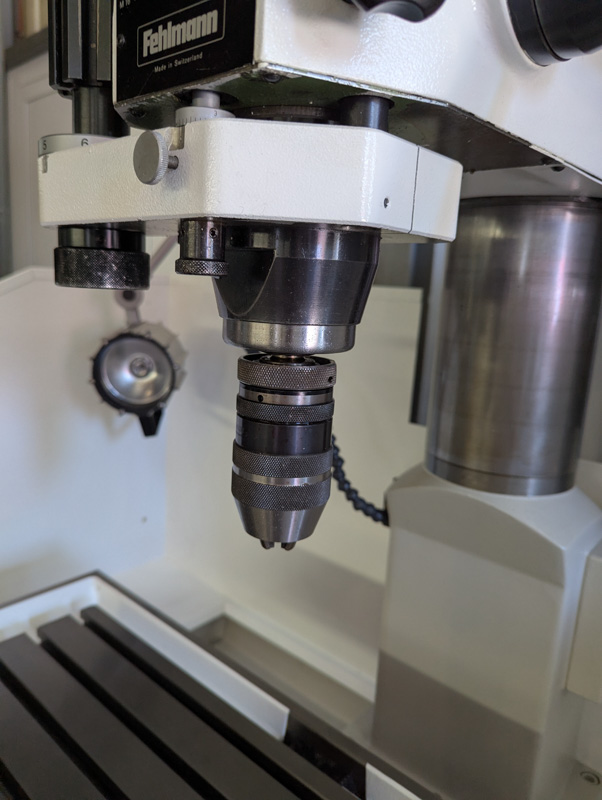

Used drilling chuck on SF32 base
Used vise
Used reaming head on SF32 base
