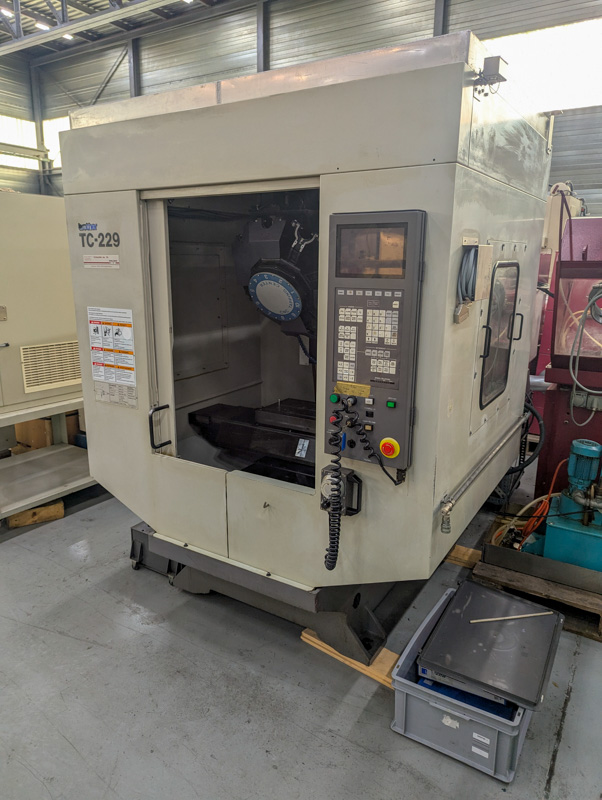

Machining center Brother TC-229
| State | Used |
|---|---|
| Category | Machining centre |
| Brand | BROTHER |
| Model | TC-229 |

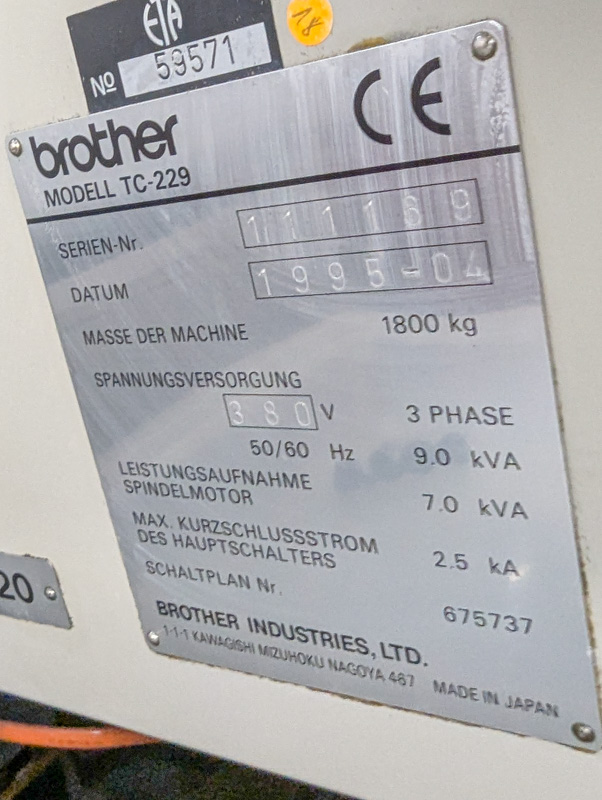

| Serial number | 111169 |
| Year of manufacture | 1995 |
| Inventory number | 3593 |
Characteristics
Number of axes: 3 axes (X, Y, Z)
Travels :
X: 480 mm
Y: 360 mm
Z: 270 mm

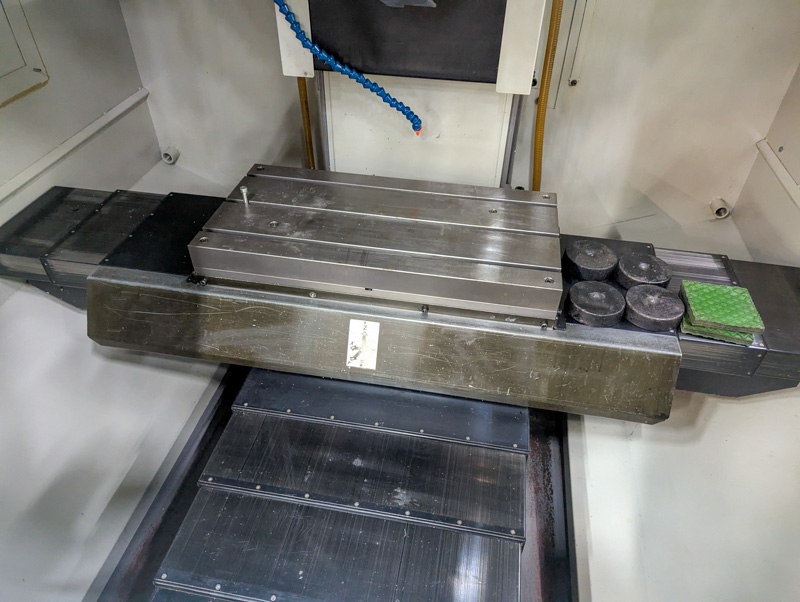

Table :
Dimensions: 600 x 300 mm
Maximum load: 150 kg (approx. 330 lbs)
Spindle :
Maximum speed: 10,000 rpm
Taper: BT30

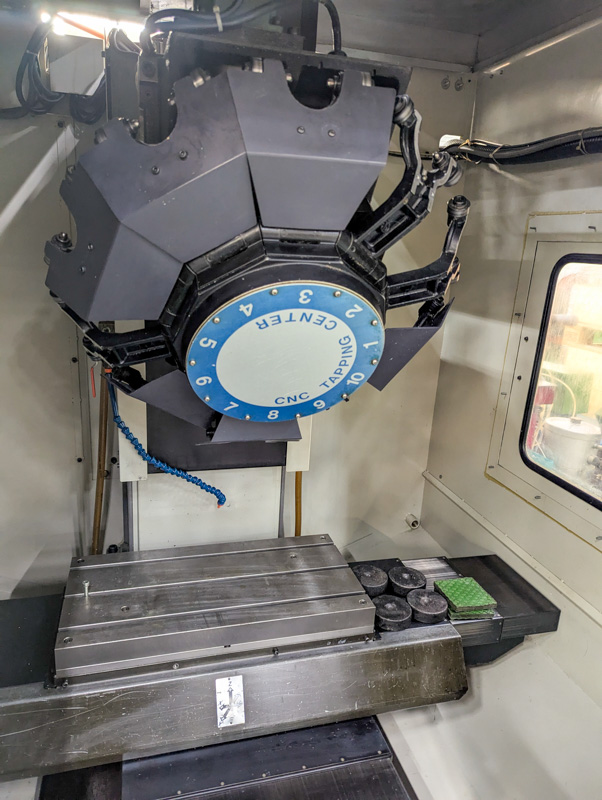

Tool changer :
Capacity: 10 tools
Machine dimensions: approx. 1600 x 1850 x 2100 mm
Weight: ~ 2000 kg
Power supply : 380 V / 50 Hz, consumption ~9 kVA
